The Dillon Aero Mission Configurable Aircraft System (MCAS-UH) offers numerous configurations allowing for any combination of both Fixed Forward, outboard weapons/storage locations, and internally mounted Crew-Served Weapons without any aircraft modifications.
Both internal and external weapons stations can be mounted on the cross-cabin floor plate system, which swings out of the way when not in use. Two 3,000- or 4,000-round magazines may be accommodated with the M134D gun systems.

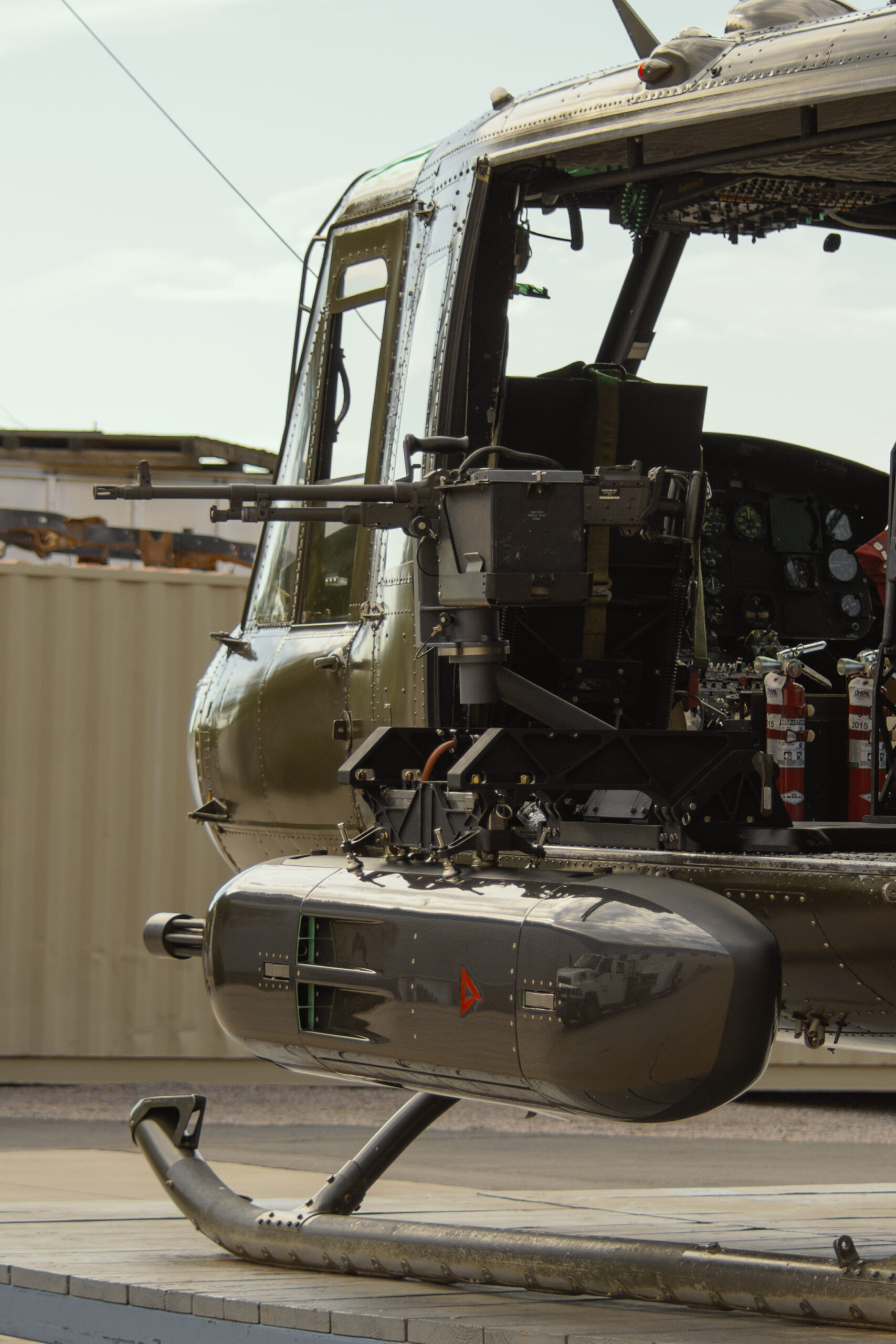

Compatible with dual M134D Miniguns, dual M260 rocket pods, dual .50 caliber pods, or a combination of guns and rockets. The Dillon Aero MCAS-UH is currently in service with the U.S. and foreign militaries, as well as in government service branches. Outboard station arms fold upwards, reducing overall aircraft footprint for storage or transport.
Internally mounted Crew-Served Options
Externally mounted Fixed Forward options:
