Bell MCAS-UH

Part Number: TBD

The Dillon Aero Mission Configurable Aircraft System (MCAS-UH) offers numerous configurations allowing for any combination of both Fixed Forward, outboard weapons/storage locations, and internally mounted Crew-Served Weapons without any aircraft modifications.

Both internal and external weapons stations can be mounted on the cross-cabin floor plate system, which swings out of the way when not in use. Two 3,000- or 4,000-round magazines may be accommodated with the M134D gun systems.

Compatible with dual M134D Miniguns, dual M260 rocket pods, dual .50 caliber pods, or a combination of guns and rockets. The Dillon Aero MCAS-UH is currently in service with the U.S. and foreign militaries, as well as in government service branches. Outboard station arms fold upwards, reducing overall aircraft footprint for storage or transport.

Components

Both internal and external weapons stations can be mounted on the cross-cabin floor plate system

Two 3,000- or 4,000-round magazines may be accommodated with the M134D gun systems.

Compatible with dual M134D Miniguns, dual M260 rocket pods, dual .50 caliber pods, or a combination of guns and rockets

MCAS-UH is currently in service with the U.S. and foreign militaries, as well as in government service branches

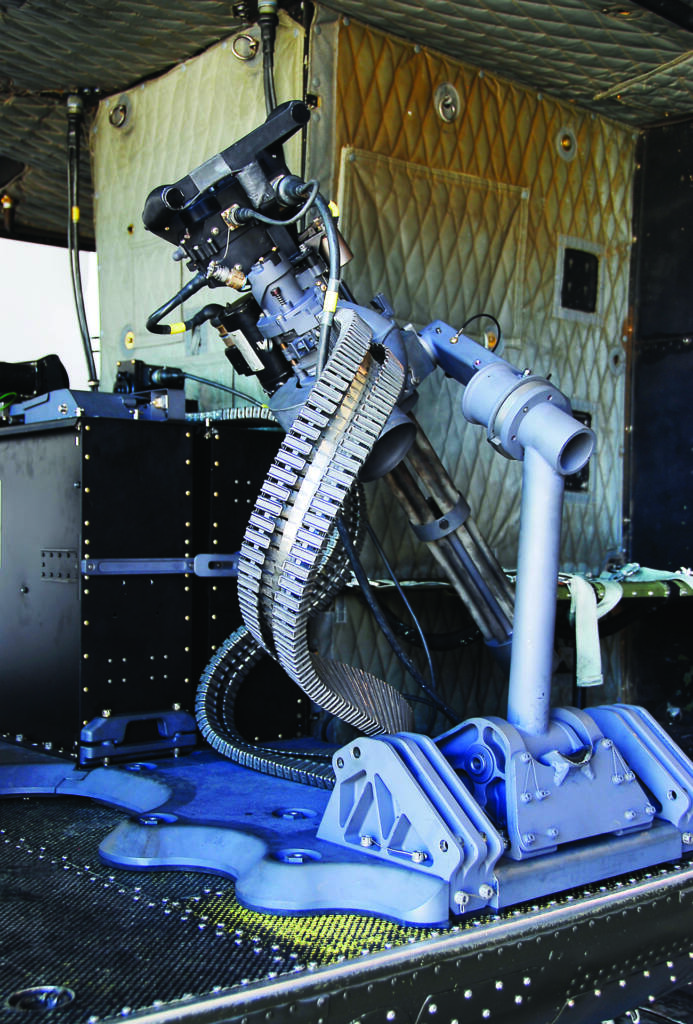

Internally mounted Crew-Served Options

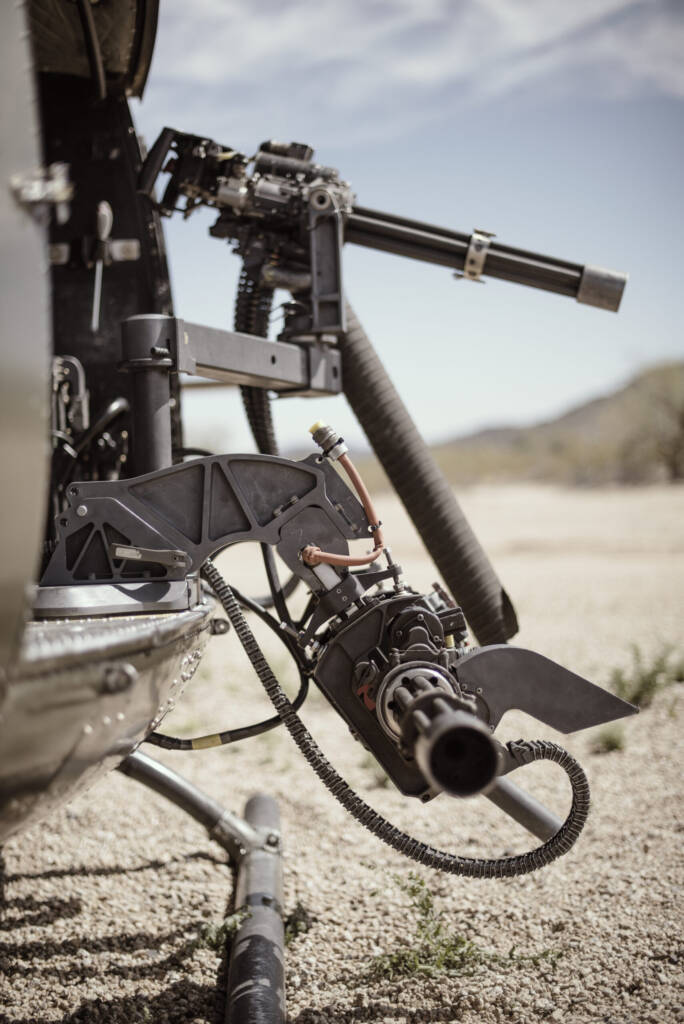

Kick-out mount supports any two of the M134D, M240/MAG58, PKM, or M60
Both Crew Served options may retract/fold/swing back into the cabin, allowing closure of cabin doors

Externally mounted Fixed Forward options:

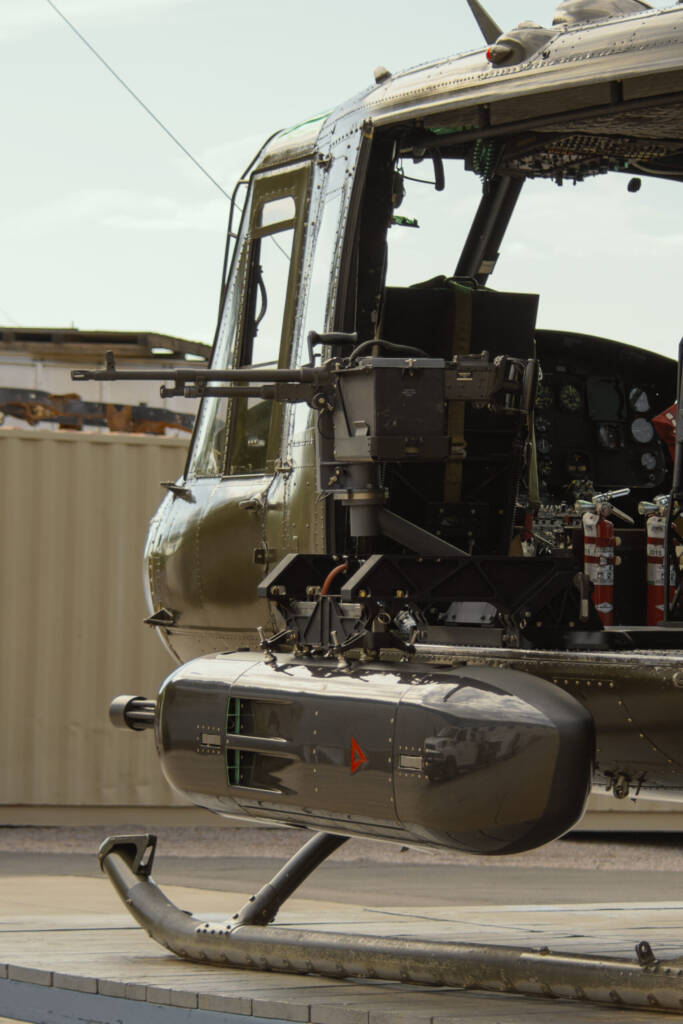

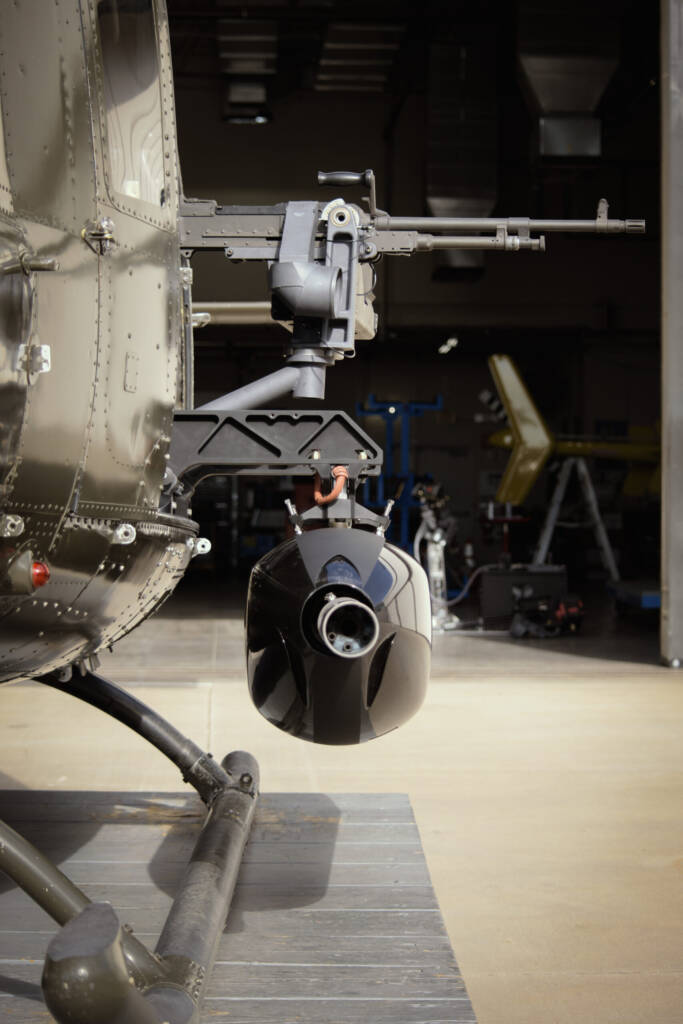

Outboard stations (14” NATO bomb rack on each side)
Fixed Forward Hard Back M134D Weapon System

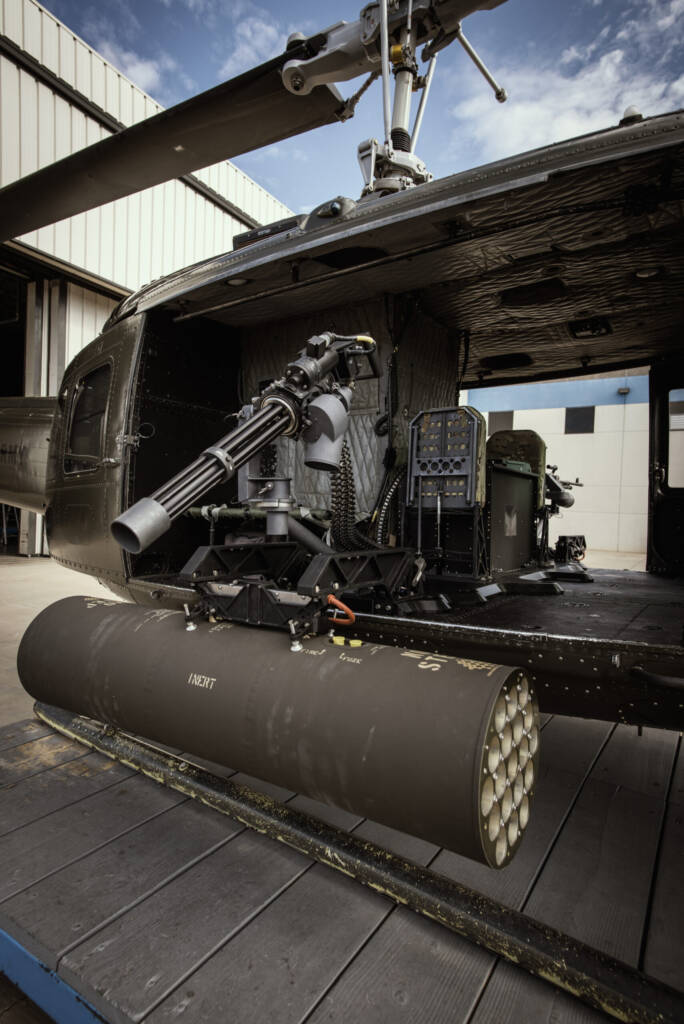

Rocket pod (7-, 12- or 19-tube)
Total outboard station capacity of 800 pounds
