Aircraft Gun Sight

Part Number: DGSMK-12

Sight – 1.61 lbs. (0.73 kg)
Total system weight – 11.8 lbs. (5.35 kg)
System includes: 2 gun sights, 2 mounts, 2 brackets, 1 towel bar and miscellaneous hardware

Aircraft interface
Integrated into aircraft electrical system – no batteries to charge or replace.

The Fixed Forward Gun Sight is a simple, robust optical collimator design optical sighting system, for use in
tactical aircraft.

Tracing its lineage to the Lynn Type 3 Aircraft Sight, the gun sight has been re-designed to incorporate updated and simplified optics, on-board controls, optimized electronics, and aircraft power-source provisions.

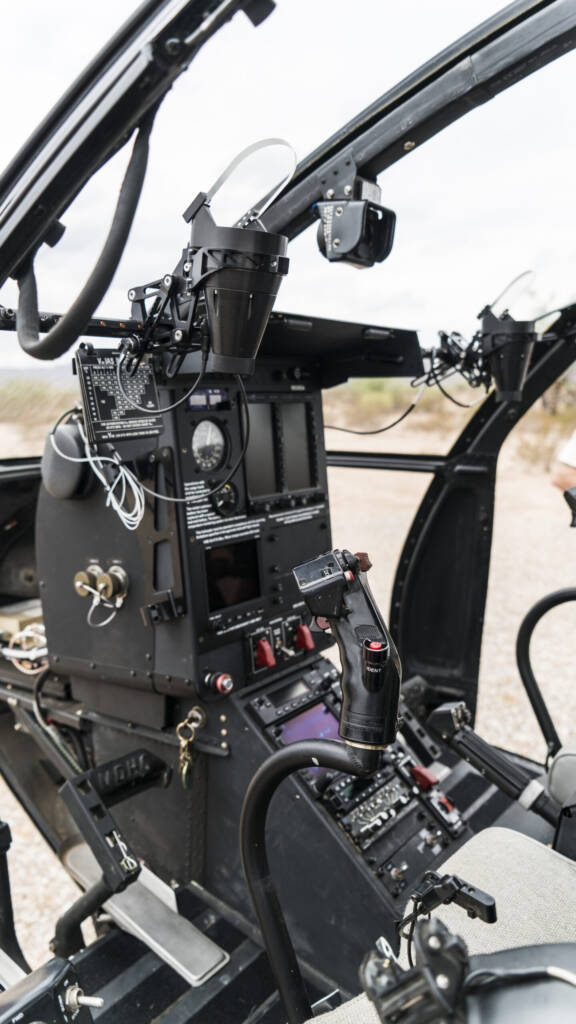

We currently have mounting provisions for multiple types of aircraft; however, the Gun Sight is adaptable to many fixed-wing and rotary-wing platforms with Fixed Forward
weapon systems.


Fixed Forward (Reflex) Gun Sight

Greatly improves first-pass hits

Lateral adjustment 4.2 inches

Vertical adjustment 3.55 inches

Adjustable azimuth and elevation, ± 3°

Night-vision device (NVD) compatible

Simple & intuitive; remarkable ease of use

Requires minimal training to attain proficiency

Effective targeting to 1,200 m maximum effective range
