M134D-H (Hybrid 7.62 x 51mm)

Part Number: M134D-H
NSN: 1005-01-581-7342

Weight:
Fixed Forward Fire: 43.5 lbs.
Crew Served Gun: 52.5 lbs.

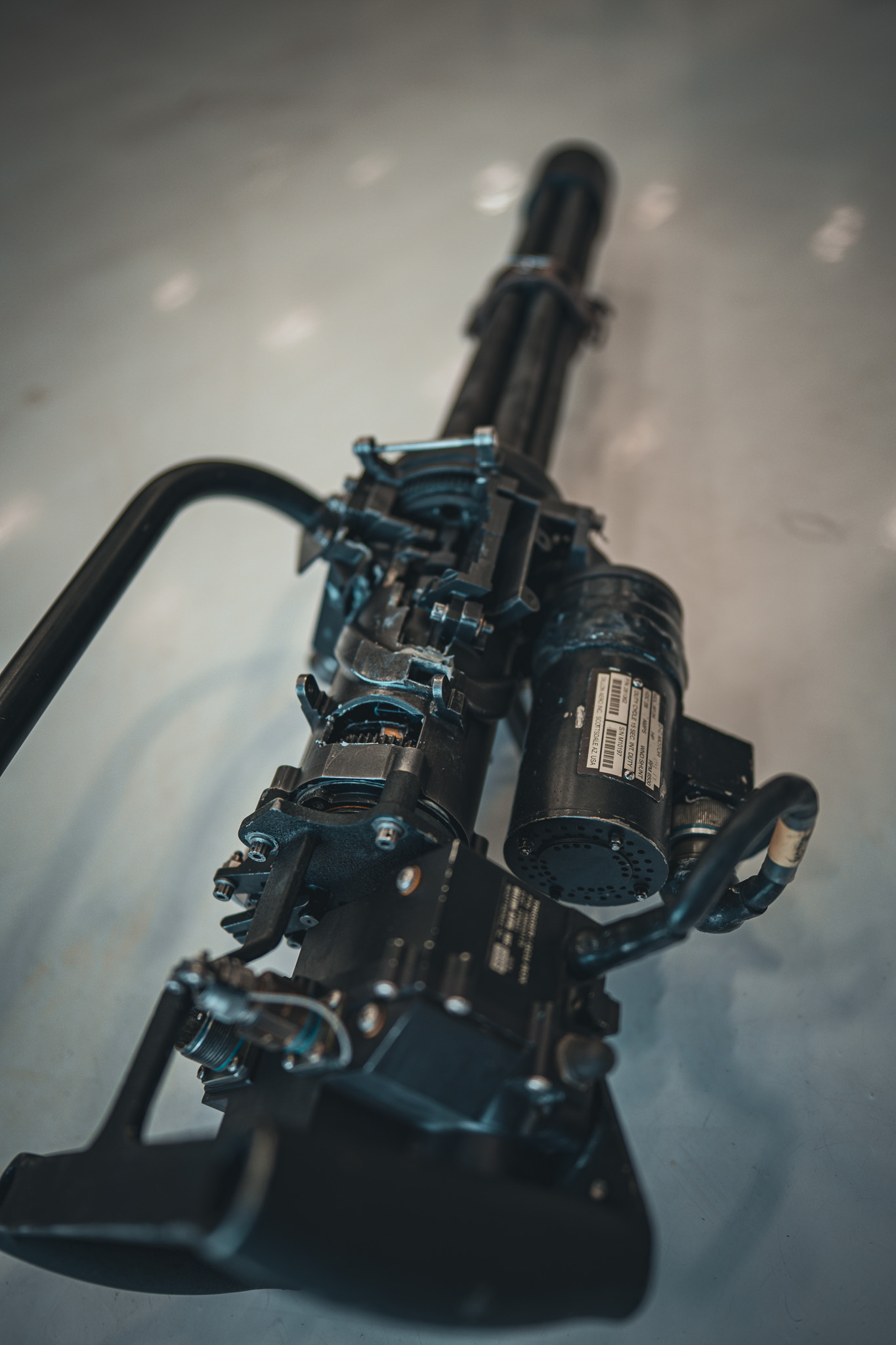

The M134D-H Hybrid Gatling Gun is the standard lightweight Minigun design from Dillon Aero.

Utilizing titanium and skeletonized parts, the M-134D-H is designed to offer increased weight savings while retaining the longer service life of the steel gun.

The hybrid gun system is between 10-20 pounds lighter than the steel system, and has a service life of 1,500,000.

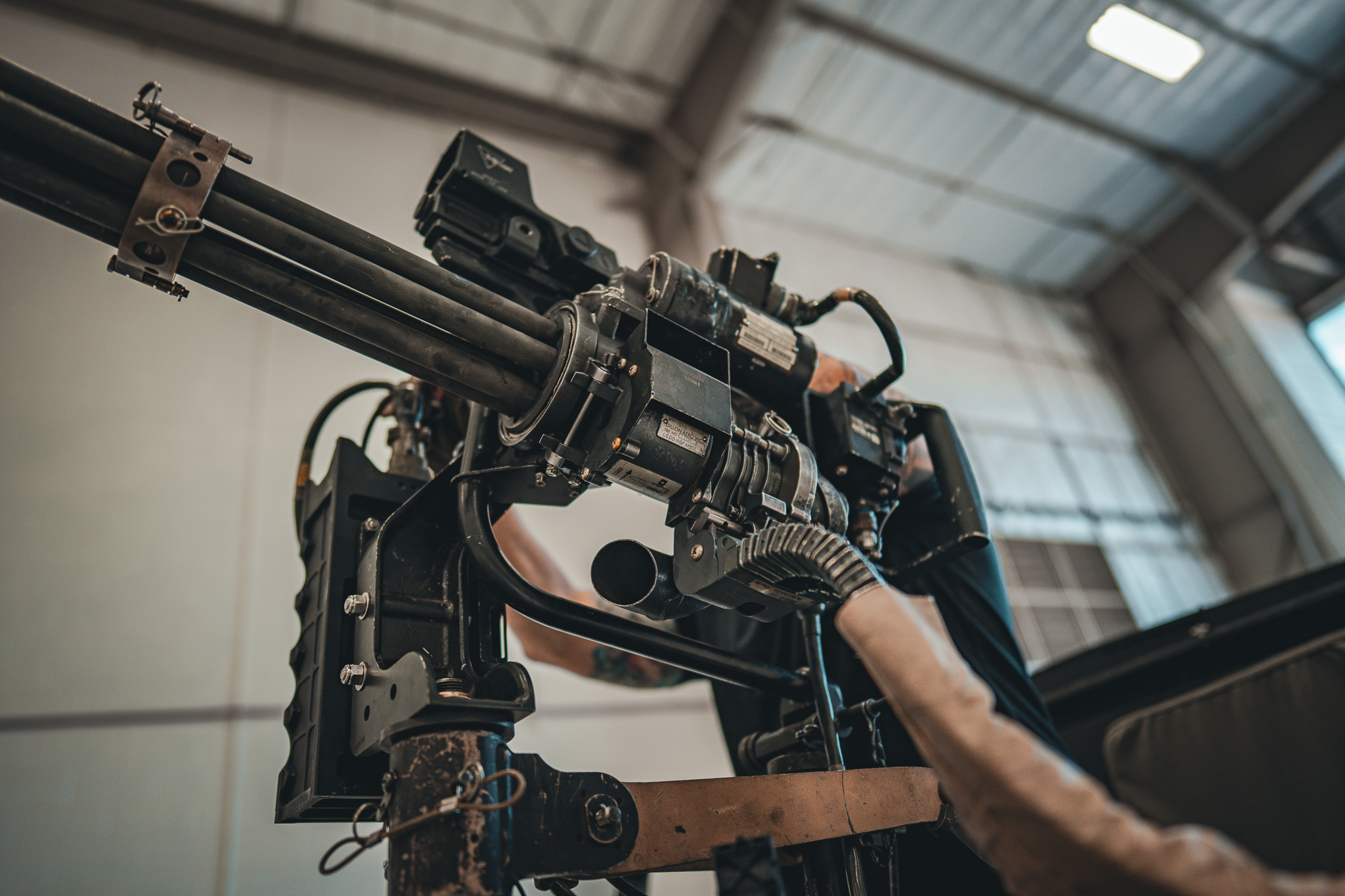

The M134D-H is in widespread use in both Crew Served and Fixed Forward applications.

Additional Info

Features

  • Chambered in standard .50 BMG (12.7 x 99mm NATO)
  • Firing Rate: Up to 1500 rounds per minute (25 rounds per second)
  • Gun Weight: 101.4 lbs. / 46 kg (gun and feeder)
  • Magazine Capacity: up to 600 rounds depending on application
  • 24-28 V DC Drive System503D
