Universal Naval Deck Mount

Part Number: NAV-MK16-MOD9
NSN: 1005-01-581-7375

The MK16 Deck Mount is a system of firing fixtures and assorted mount frames that naturally interface with the M134D Weapon System and other crew-served weapons.

A compact design enables the Deck Mount to attach to land, sea or air based platforms with equivalent accessibility and ease of installation.

Qualified for use aboard a broad spectrum of vehicles, the Deck Mount is ideally suited as mount hardware for the M134D Weapon System in all mobile combat roles.

COMPONENTS

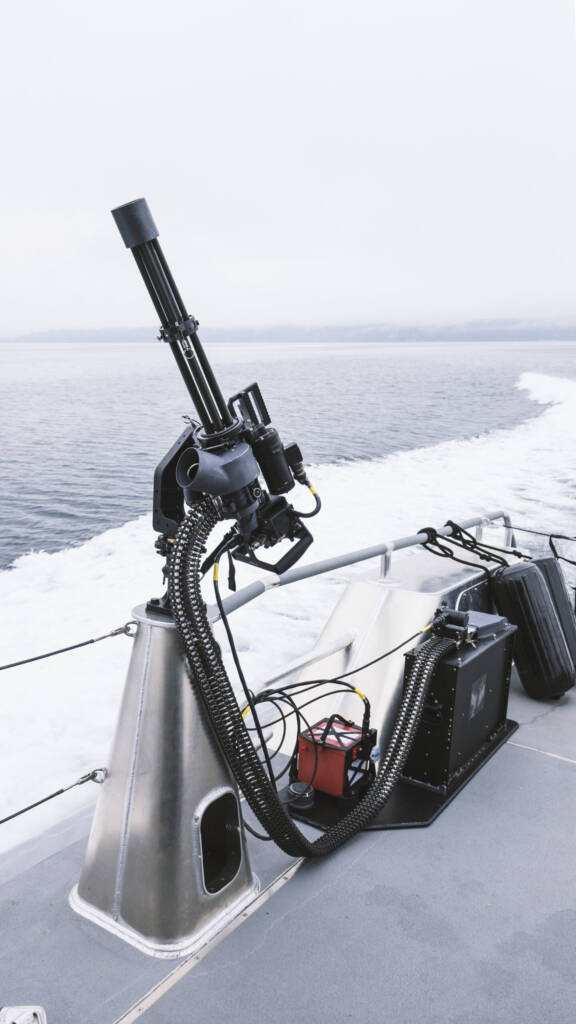

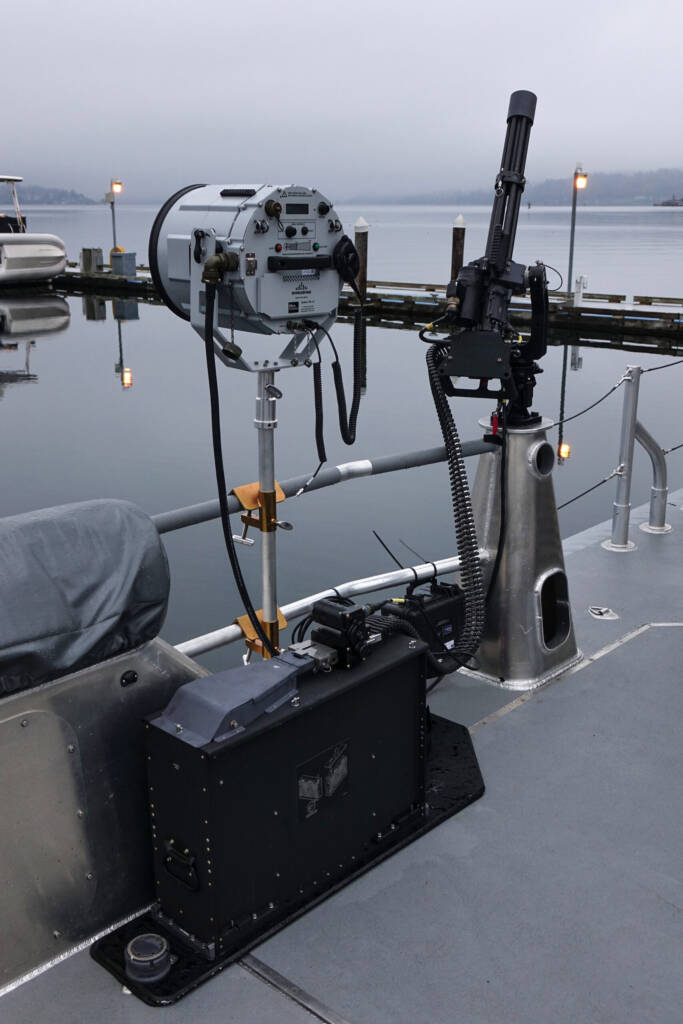

MOD 8 – Flowerpot: Attached to hard-points upon mount assemblies or pre-existing platform structures (i.e. gunnel or rail system) this fixture adapts the widely compatible Dillon Aero Forged Vertical Arm to a Deck via the 2.25” Pintle

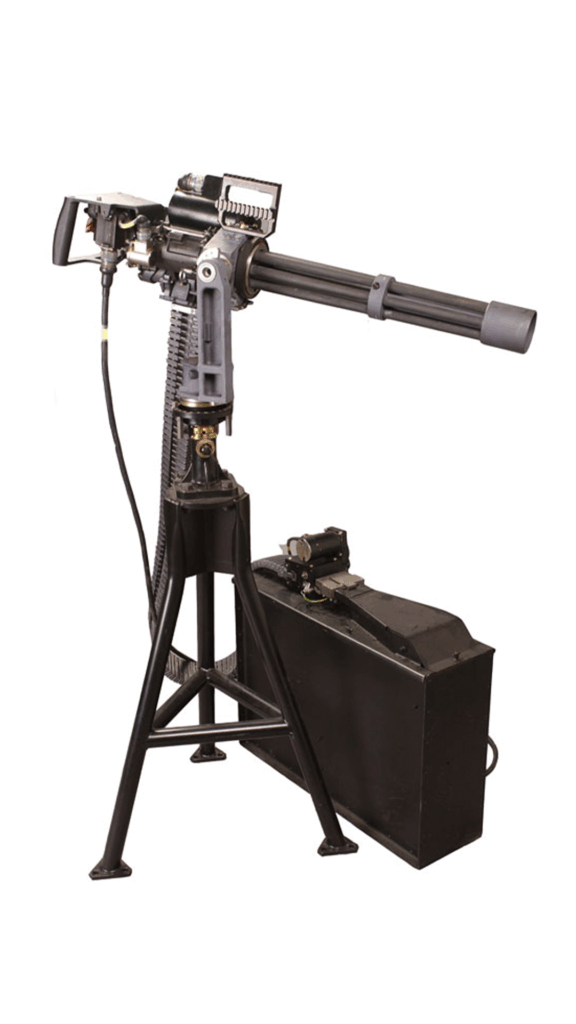

MOD 9 – Centered Tripod: Fastened thoroughly into a deck surface, this tripod positions attached weapons over the center of the mount. This variant of the Deck Mount incorporates the Flowerpot

MOD 11 – Skewed Tripod: Fastened thoroughly into a deck surface, this tripod may be skewed forward to align attached weapons above the edge of a deck’s trim. This variant of the Deck Mount incorporates the Flowerpot
