Airbus Mounts

Part Number: DGMT8600

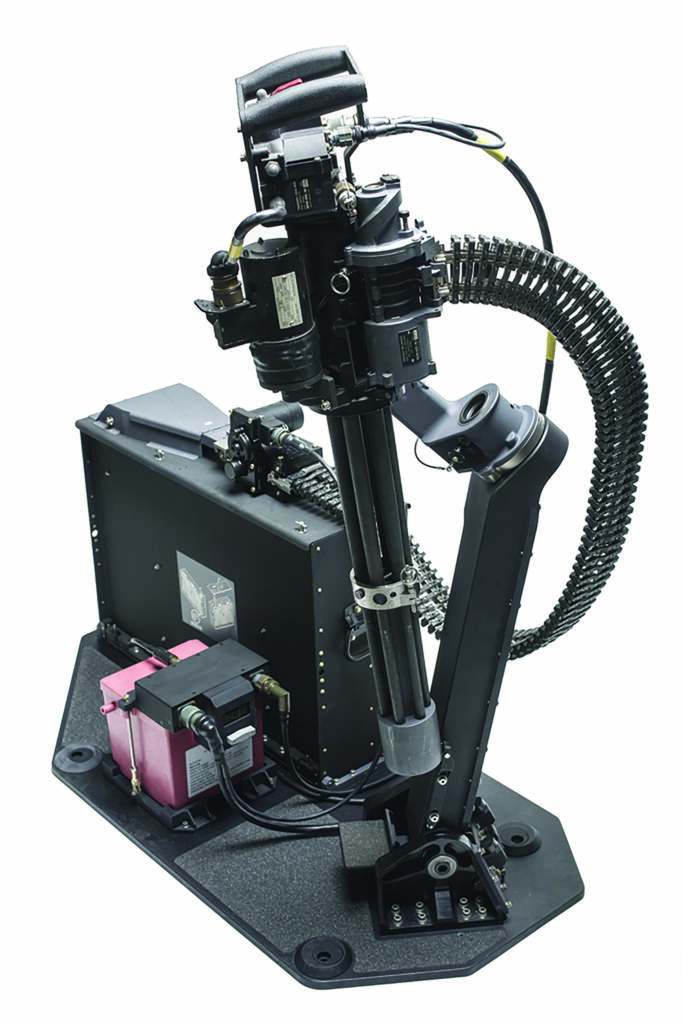

The Dillon Aero H225, EC725, AS332 & AS532 Mounts attach to standard floor hard points with no structural aircraft modifications required.

Installation is designed for left and right door applications while still allowing easy access through the doorway.

The system incorporates a kick-out arm assembly to fire, then can be stowed when not in use, allowing the doors to close.

Ammunition for the M134D is supplied by a 3,000-round magazine and feed system.


24 VDC battery

Elevation 1.5° Depression 55°

Integrated battery status indicator

Integrated stow/lock of the gun in azimuth and elevation

Gas assist stowage of arm (reduces weight the operator has to pull into the aircraft)

Total field of fire approximately 110° (Left and right azimuths based on aircraft configuration)

Weight: Total system weight with
3,000 rounds ≈ 430 lb (195 kg)

Aircraft Interface: Pilot control box,
24 VDC trickle charge

Dimensions: Base plate
22.56” (57.3 cm) x 48.97” (124.4 cm)
